RxPipeline Struct Reference
[Generic]

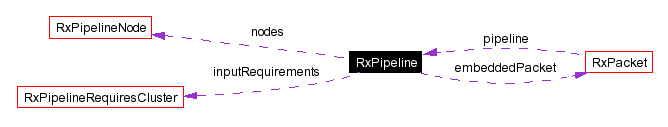

Collaboration diagram for RxPipeline:

Data Fields
RwBool	locked
RwUInt32	numNodes
RxPipelineNode *	nodes
RwUInt32	packetNumClusterSlots
rxEmbeddedPacketState	embeddedPacketState
RxPacket *	embeddedPacket
RwUInt32	numInputRequirements
RxPipelineRequiresCluster *	inputRequirements
void *	superBlock
RwUInt32	superBlockSize
RwUInt32	entryPoint
RwUInt32	pluginId
RwUInt32	pluginData

---

Detailed Description

Structure describing a pipeline

---

Field Documentation

RxPacket* embeddedPacket

This pipeline's embedded packet

rxEmbeddedPacketState embeddedPacketState

The state of this pipeline's embedded packet

RwUInt32 entryPoint

The index of the node which is the entry point of this pipeline

RxPipelineRequiresCluster* inputRequirements

Input requirements array

RwBool locked

Flags whether the pipeline is locked for editing

RxPipelineNode* nodes

Topologically sorted array of pipeline nodes

RwUInt32 numInputRequirements

Input requirements count

RwUInt32 numNodes

Node count

RwUInt32 packetNumClusterSlots

Number of slots allocated for clusters

RwUInt32 pluginData

Rights callback extra data

RwUInt32 pluginId

If required, the Id of the plugin owning this pipeline, or 0

void* superBlock

Internally used block of memory

RwUInt32 superBlockSize

Internally used block of memory

---
