RxPipelineNode Struct Reference
[Generic]

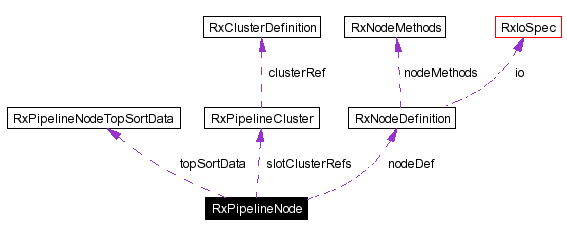

Collaboration diagram for RxPipelineNode:

Data Fields
RxNodeDefinition *	nodeDef
RwUInt32	numOutputs
RwUInt32 *	outputs
RxPipelineCluster **	slotClusterRefs
RwUInt32 *	slotsContinue
void *	privateData
RwUInt32 *	inputToClusterSlot
RxPipelineNodeTopSortData *	topSortData
void *	initializationData
RwUInt32	initializationDataSize

---

Detailed Description

Structure describing a pipeline Node; that is an RxNodeDefinition in the context of a specific RxPipeline.

---

Field Documentation

void* initializationData

Used by the pipeline node initialisation function in setting up the Private data.

RwUInt32 initializationDataSize

Present so that if the node is cloned we can copy the initialisation data.

RwUInt32* inputToClusterSlot

LUT to locate clusters of interest in packets passing through this pipeline Node

RxNodeDefinition* nodeDef

Node definition reference

RwUInt32 numOutputs

Output count

RwUInt32* outputs

Output array, indexing the pipeline's array of pipeline nodes

void* privateData

Pointer to the pipeline Node's private data

RxPipelineCluster** slotClusterRefs

For packets passing through this node, SlotClusterRefs[n] identifies the cluster to be found at index n in the packet's Clusters[] array. These assignments are determined at pipeline Unlock() time and are good for the life of the pipeline.

RwUInt32* slotsContinue

Cluster persistence table for the node's outputs

RxPipelineNodeTopSortData* topSortData

Internal Use

---
