RxPacket Struct Reference
[Generic]

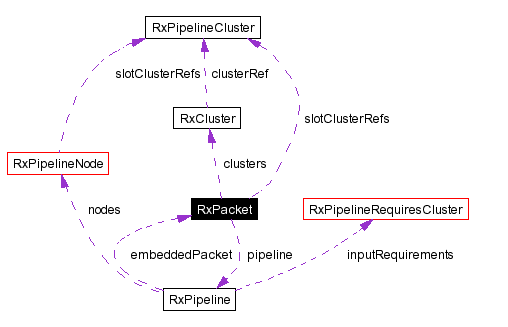

Collaboration diagram for RxPacket:

Data Fields
RwUInt16	flags
RwUInt16	numClusters
RxPipeline *	pipeline
RwUInt32 *	inputToClusterSlot
RwUInt32 *	slotsContinue
RxPipelineCluster **	slotClusterRefs
RxCluster	clusters [1]

---

Detailed Description

A structure describing a packet header

---

Field Documentation

RxCluster clusters[1]

Cluster array large enough for widest part of the pipeline

RwUInt16 flags

Flags to guide pipeline execution

RwUInt32* inputToClusterSlot

LUT to locate clusters of interest in the packet

RwUInt16 numClusters

Maximum number of clusters simultanesouly present in the current pipeline

RxPipeline* pipeline

The pipeline in which this packet is embedded (the current pipeline)

RxPipelineCluster** slotClusterRefs

Internal Use

RwUInt32* slotsContinue

Bitfields specifying clusters persisting to output node

---
