RxMeshStateVector Struct Reference
[Generic]

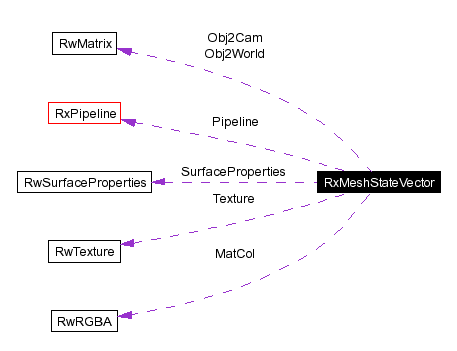

Collaboration diagram for RxMeshStateVector:

Data Fields
RwInt32	Flags
void *	SourceObject
RwMatrix	Obj2World
RwMatrix	Obj2Cam
RwSurfaceProperties	SurfaceProperties
RwTexture *	Texture
RwRGBA	MatCol
RxPipeline *	Pipeline
RwPrimitiveType	PrimType
RwUInt32	NumElements
RwUInt32	NumVertices
RwInt32	ClipFlagsOr
RwInt32	ClipFlagsAnd
void *	SourceMesh
void *	DataObject

---

Detailed Description

Structure describing a mesh-state vector, used by the RxClMeshState cluster

---

Field Documentation

RwInt32 ClipFlagsAnd

Boolean AND of the RwClipFlag clip flags of all vertices in the mesh

RwInt32 ClipFlagsOr

Boolean OR of the RwClipFlag clip flags of all vertices in the mesh

void* DataObject

Mirrors the void data pointer of RxPipelineExecute

RwInt32 Flags

RxGeometryFlag Flags from the source geometry

RwRGBA MatCol

RwRGBA material color

RwUInt32 NumElements

RwUInt32 number of elements (triangles, lines...)

RwUInt32 NumVertices

RwUInt32 number of vertices

RwMatrix Obj2Cam

RwMatrix to transform from object-space to camera-space

RwMatrix Obj2World

RwMatrix to transform from object-space to world-space

RxPipeline* Pipeline

A pointer to the material pipeline where appropriate

RwPrimitiveType PrimType

RwPrimitiveType primitive type

void* SourceMesh

A void pointer to the source RpMesh

void* SourceObject

A void pointer. In immediate mode it points to an internal structure and in atomic/world-sector object or material pipelines it points to an RpMaterial.

RwSurfaceProperties SurfaceProperties

RwSurfaceProperties

RwTexture* Texture

A pointer to a RwTexture

---
