RtLtMapCnvWorldSession Struct Reference
[RtLtMapCnv]

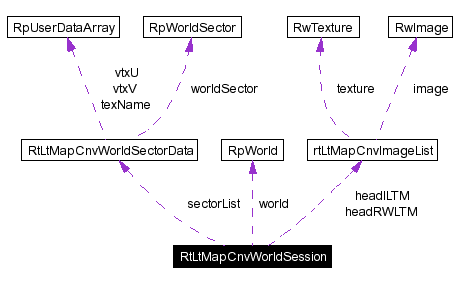

Collaboration diagram for RtLtMapCnvWorldSession:

Data Fields
RpWorld *	world
RwUInt32	errorFlag
RwInt32	numSector
RtLtMapCnvWorldSectorData *	sectorList
RwUInt32	samplingFactor
RwBool	reSampleImportedLightmap
RwBool	useGreedyRasterization
RwReal	smallSizeRejectionFactor
rtLtMapCnvImageList *	headILTM
RwInt32	ILTMCount
rtLtMapCnvImageList *	headRWLTM
RwInt32	RWLTMCount

---

Detailed Description

The RtLtMapCnvWorldSession structure holds information to be passed to RtLtMapCnvWorldConvert. It is used to parameterize the conversion process.

See also:

RtLtMapCnvWorldSectorCnvDataCreate , RtLtMapCnvWorldSectorCnvDataDestroy , RtLtMapCnvWorldConvert , RtLtMapCnvWorldSessionGetRejectionFactor , RtLtMapCnvWorldSessionSetRejectionFactor , RtLtMapCnvWorldSessionGetGreedyRasterization , RtLtMapCnvWorldSessionSetGreedyRasterization , RtLtMapCnvWorldSessionGetImportedLtMapResample , RtLtMapCnvWorldSessionSetImportedLtMapResample

---

Field Documentation

RwUInt32 errorFlag

A flag for returing the error status in the event of an error during conversion.

rtLtMapCnvImageList* headILTM

Internal use only.

rtLtMapCnvImageList* headRWLTM

Internal use only.

RwInt32 ILTMCount

Internal use only.

RwInt32 numSector

Internal use only.

RwBool reSampleImportedLightmap

Specifies if the imported lightmap is to be rescaled to the working image size.

RwInt32 RWLTMCount

Internal use only.

RwUInt32 samplingFactor

Specifies the scaling factor for the RenderWare sample image, generated from the imported lightmaps during conversion.

RtLtMapCnvWorldSectorData* sectorList

Internal use only.

RwReal smallSizeRejectionFactor

Specifies the small triangle rejection threshold.

RwBool useGreedyRasterization

Specifies if greedy rasterization is to used.

RpWorld* world

This is the world whose lightmaps are converted during the conversion process.

---
