RtLtMapCnvAtomicSession Struct Reference
[RtLtMapCnv]

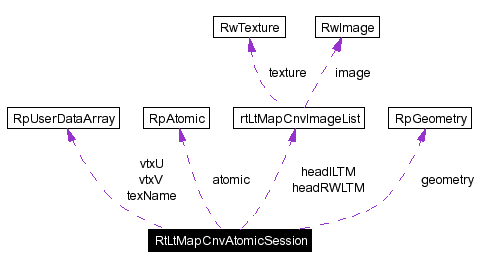

Collaboration diagram for RtLtMapCnvAtomicSession:

Detailed Description

The RtLtMapCnvAtomicSession structure holds information to be passed to RtLtMapCnvAtomicConvert. It is used to parameterize the conversion process.

The structure stores the imported UV lightmap co-ordinates array and the lightmap texture name reference array.

See also:: RtLtMapCnvAtomicCnvDataCreate , RtLtMapCnvAtomicCnvDataDestroy , RtLtMapCnvAtomicGetUArray , RtLtMapCnvAtomicGetVArray , RtLtMapCnvAtomicGetTexNameArray , RtLtMapCnvAtomicConvert , RtLtMapCnvAtomicSessionGetRejectionFactor , RtLtMapCnvAtomicSessionSetRejectionFactor , RtLtMapCnvAtomicSessionGetGreedyRasterization , RtLtMapCnvAtomicSessionSetGreedyRasterization , RtLtMapCnvAtomicSessionGetImportedLtMapResample , RtLtMapCnvAtomicSessionSetImportedLtMapResample

RpAtomic* atomic

The atomic whose lightmaps are converted during the conversion process.

RwUInt32 errorFlag

A flag for returing the error status in the event of an error during conversion.

RpGeometry* geometry

Internal use only.

rtLtMapCnvImageList* headILTM

Internal use only.

rtLtMapCnvImageList* headRWLTM

Internal use only.

RwInt32 ILTMCount

Internal use only.

RwBool reSampleImportedLightmap

Specifies if the imported lightmap is to be rescaled to the working image size.

RwInt32 RWLTMCount

Internal use only.

RwUInt32 samplingFactor

Specifies the scaling factor for the RenderWare sample image, generated from the imported lightmaps during conversion.

RwReal smallSizeRejectionFactor

Specifies the small triangle rejection threshold.

RpUserDataArray* texName

A user data array storing the texture name reference per triangle.

RwBool useGreedyRasterization

Specifies if greedy rasterization is to used.

RpUserDataArray* vtxU

A user data array storing the U lightmap co-ordinate per vertex.

RpUserDataArray* vtxV

A user data array storing the V lightmap co-ordinate per vertex.
