RtFile Struct Reference
[Data Types]

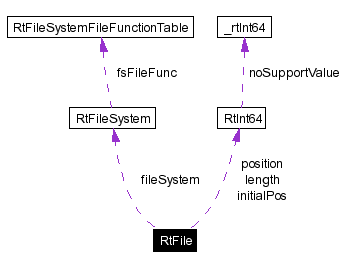

Collaboration diagram for RtFile:

Data Fields
RtInt64	length
RtInt64	position
RtInt64	initialPos
RwBool	isAsync
RwInt32	priority
RtFileStatus	status
RtFileError	error
RtFSFileOperation	outstandingFileOp
RwUInt32	outstandingSize
RtFSFileOpCallBack	outstandingCB
void *	oustandingCBData
RtFileSystem *	fileSystem

---

Detailed Description

This is the base file object used by the file system.

---

Field Documentation

RtFileError error

The error code corresponding to a possible error that occured on this file.

RtFileSystem* fileSystem

The file system this file belongs to.

RtInt64 initialPos

File position before a read. Internal use.

RwBool isAsync

Has this file been opened in asynchronous mode (TRUE if yes, FALSE otherwise).

RtInt64 length

The length of this file.

void* oustandingCBData

Data passed back to the outstanding callback

RtFSFileOpCallBack outstandingCB

Callback triggered when the outstanding operation completes.

RtFSFileOperation outstandingFileOp

This is the current asynchronous operation being executed.

RwUInt32 outstandingSize

Size passed back to the outstanding callback

RtInt64 position

The file pointer position.

RwInt32 priority

The file priority.

RtFileStatus status

The current status of this file.

---
