RpPrtStdEmitter Struct Reference
[RpPrtStd]

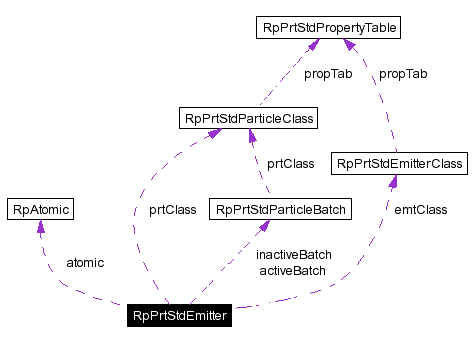

Collaboration diagram for RpPrtStdEmitter:

Data Fields
RpPrtStdEmitter *	next
RwUInt32	flag
RpAtomic *	atomic
RpPrtStdEmitterClass *	emtClass
RwInt32	prtActive
RwInt32	prtBatchMaxPrt
RpPrtStdParticleClass *	prtClass
RpPrtStdParticleBatch *	inactiveBatch
RpPrtStdParticleBatch *	activeBatch
RwReal	boundingSphere

---

Detailed Description

A structure repsenting the mandatory data set for any emitter. Each emitter contains information of itself and its particles, via the emitter class and particle class respectively. It also contains the list of particles, in batches, it had emitted. Optional data are stored immediately after the mandatory set. The contents of the optional data are described in the emitter class's property table. The offset from the property table are from the start of the emitter.

The type of particles emitted are given by the particle class. Each emitter may have only emitter class and particle class and these should not be changed during the lifetime of the emitter and its particles. The emitter maintains two lists of particle batches, an acitive list, contain still active particles, and an inactive list. The maximum number of particles in each batch is given by the prtBatchMaxPrt field.

---

Field Documentation

RpPrtStdParticleBatch * activeBatch

Circular linked list of active particle batches

RpAtomic* atomic

Pointer to emitter's parent atomic

RwReal boundingSphere

Emitter's bounding sphere.

RpPrtStdEmitterClass* emtClass

Pointer the emitter's class

RwUInt32 flag

Emitter's property flag

RpPrtStdParticleBatch* inactiveBatch

Circular linked list of inactive particle batches

RpPrtStdEmitter* next

Pointer to the next emitter

RwInt32 prtActive

Number of particles emitted

RwInt32 prtBatchMaxPrt

Maximum number of particles per batch

RpPrtStdParticleClass* prtClass

Pointer to the particle's class

---
