RpPatchMesh Struct Reference
[RpPatch]

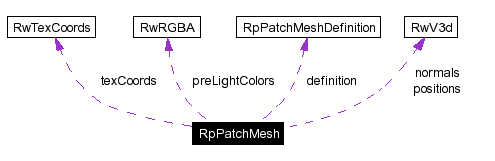

Collaboration diagram for RpPatchMesh:


Data Fields
RwV3d *	positions
RwV3d *	normals
RwRGBA *	preLightColors
RwTexCoords *	texCoords [rwMAXTEXTURECOORDS]
RpPatchMeshDefinition	definition

Detailed Description

holds the control point data for a patch mesh. The patch mesh should be created with RpPatchMeshCreate. The patch mesh should be locked with RpPatchMeshLock before the data is edited. Quadrilateral and triangle patches can be defined from the control points with RpPatchMeshSetQuadPatch and RpPatchMeshSetTriPatch respectively. The patch mesh should be unlocked with RpPatchMeshUnlock before it is added to an RpAtomic with RpPatchAtomicSetPatchMesh.

RpPatchMeshDefinition definition

Patch mesh definition data.

RwV3d* normals

Control point normals.

RwV3d* positions

Control point positions.

RwRGBA* preLightColors

Control point pre-light colors.

RwTexCoords* texCoords[rwMAXTEXTURECOORDS]

Control point texture coordinates.
