RpHAnimHierarchy Struct Reference
[RpHAnim]

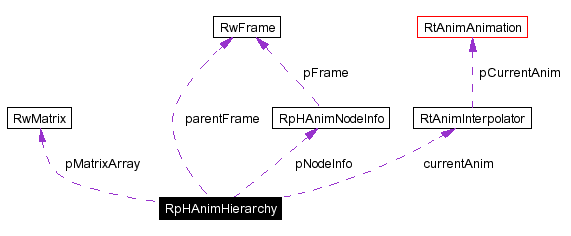

Collaboration diagram for RpHAnimHierarchy:

Data Fields
RwInt32	flags
RwInt32	numNodes
RwMatrix *	pMatrixArray
void *	pMatrixArrayUnaligned
RpHAnimNodeInfo *	pNodeInfo
RwFrame *	parentFrame
RpHAnimHierarchy *	parentHierarchy
RwInt32	rootParentOffset
RtAnimInterpolator *	currentAnim

---

Detailed Description

An RpHAnimHierarchy is used to "play back" an animation.

The structure of a hierarchy is defined by an array of RpHAnimNodeInfo structures.

The hierarchy is defined by running through the node array in order, pushing the parent-node's matrix whenever a child is reached that has more than one sibling, and popping the parent matrix when a "leaf" node is encountered.

---

Field Documentation

RtAnimInterpolator* currentAnim

Internal use

RwInt32 flags

Flags for the hierarchy

RwInt32 numNodes

Number of nodes in the hierarchy

RwFrame* parentFrame

Pointer to the Root RwFrame of the hierarchy this RpHAnimHierarchy represents

RpHAnimHierarchy* parentHierarchy

Internal use

RwMatrix* pMatrixArray

Pointer to node matrices

void* pMatrixArrayUnaligned

Pointer to memory used for node matrices from which the aligned pMatrixArray is allocated

RpHAnimNodeInfo* pNodeInfo

Array of node information (push/pop flags etc)

RwInt32 rootParentOffset

Internal use

---
