Serializing Name Data
[Tutorial 4 - Writing a Plugin]

To complete our simple plugin we would like to write the names of atomics into .DFF files, and read the data back again. RenderWare Graphics provides hooks to make this very easy. All that our plugin has to do is to inform RenderWare Graphics that we have data that we would like to write to (or read from) the .DFF stream, and provide the code to actually perform the reading and writing. When RenderWare Graphics reads in a .DFF it uses chunk identifiers to determine what data is stored in the file. Being able to identify the data helps RenderWare Graphics locate a callback function to read the data. This is why having unique plugin IDs (that also serve as the chunk ID) is so important.

To support reading and writing our plugin data to streams, we must first inform RenderWare Graphics that we can serialize data. The RpAtomicRegisterPluginStream() API call is used for this purpose. In addition to the unique plugin ID, we also pass to this function three function pointers. These are the read, write, and sizing callbacks. The read and write functions will be called to serialize the plugin data, and the sizing callback is used to tell RenderWare Graphics how many bytes will be read from/written to the stream. Note that the number of bytes might differ from the size of the extension data. In our tutorial we store only a single character pointer, however the number of bytes that we serialize to disk will depend on the size of the string stored within the atomic.

• Add the following stub functions to RpAName.c. We will implement them fully in a moment.

      static RwStream *
      rpStreamWrite(RwStream *stream, RwInt32 len,
                    const void *data, RwInt32 offset, RwInt32 size)
      {


          return stream;
      }


      static RwStream *
      rpStreamRead(RwStream *stream, RwInt32 len,
                   void *data, RwInt32 offset, RwInt32 size)
      {


          return stream;
      }


      static RwInt32
      rpStreamGetSize(const void *data, RwInt32 offset, RwInt32 size)
      {


          /* no data to write */
          return 0;
      }


• In RpAtomicNameInitialize(), add a call to RpAtomicRegisterPluginStream() to register these three callbacks. Use the same plugin ID macro as we used in the call to RpAtomicRegisterPlugin().

      RwInt32
      RpAtomicNameInitialize(void)
      {
          rpExtensionOffset =
              RpAtomicRegisterPlugin(sizeof(char *),
                     MAKECHUNKID(rwVENDORID_CRITERIONTK, rwID_EXAMPLE),
                     rpConstructor,
                     rpDestructor,
                     NULL);
          RpAtomicRegisterPluginStream(MAKECHUNKID(rwVENDORID_CRITERIONTK, rwID_EXAMPLE),
                                       rpStreamRead,
                                       rpStreamWrite,
                                       rpStreamGetSize);
          /* return the offset */
          return (rpExtensionOffset);
      }


• Compile your code, and correct any errors.

  Now we need to implement the read, write and get size functions.

• Implement the rpStreamGetSize() function. If the atomic has a name, then return the length of the name in bytes, plus one for the zero string terminator. If there is no name, simply return zero.

      static RwInt32
      rpStreamGetSize(const void *data, RwInt32 offset, RwInt32 size)
      {
          char **extData = RPEXTFROMATOMIC(data);
          if (*extData)
          {
              return rwstrlen(*extData) + 1;
          }


          /* no data to write */
          return 0;
      }


• Implement the rpStreamWrite() function to write the name to disk. Use the RwStreamWrite() API function which writes bytes to the stream. The callback contains the size (number of bytes) computed by rpStreamGetSize(). You should write this number of bytes to the stream.

      static RwStream *
      rpStreamWrite(RwStream *stream, RwInt32 len,
                    const void *data, RwInt32 offset, RwInt32 size)
      {
          char **extData = RPEXTFROMATOMIC(data);
          RwStreamWrite(stream, *extData, len);
          return stream;
      }


• Lastly, write the rpStreamRead() function. This is slightly more complex in that we must call RwMalloc() to create the space into which the data will be stored. Again, the size argument to the callback is the number of bytes of memory we must allocate. Make the extension data point to this RwMalloc'd memory. If the memory allocation fails, simply store a NULL into the extension data.

      static RwStream *
      rpStreamRead(RwStream *stream, RwInt32 len,
                   void *data, RwInt32 offset, RwInt32 size)
      {
          char **extData = RPEXTFROMATOMIC(data);
          char  *name    = RwMalloc(len, rwID_NAOBJECT);
          if (name)
          {
              RwStreamRead(stream, name, len);
              *extData = name;
              return stream;
          }


          /* no name to read, or problem with memory */
          *extData = NULL;
          return stream;
      }


• Compile the code.

  To test our stream reading and writing routines we need a function that will write the picked atomic to disk. We will add this code to utils.c, and add a new menu item that calls this new function.

• Add the following function to utils.c. This simply obtains the clump that the atomic is contained in and writes it to disk with the filename specified. Modify the header file accordingly.

      void
      DffSave(RpAtomic *atomic, char *filename)
      {
          if (atomic)
          {
              RwStream *stream = RwStreamOpen(rwSTREAMFILENAME, rwSTREAMWRITE, filename);
              RpClump  *clump  = RpAtomicGetClump(atomic);
              if (stream && clump)
              {
                  RpClumpStreamWrite(clump, stream);
                  RsWarningMessage("Wrote model!");
                  RwStreamClose(stream, NULL);
              }
              else
              {
                  RsWarningMessage("Couldn't open stream!");
              }
          }
          else
          {
              RsWarningMessage("No atomic to export!");


          }


      }


• In main.c create a new trigger menu item and callback to handle the saving of the atomic. The callback should be called saveAtomicTrigger() and for the moment just provide a default filename such as saved.dff. Later we will change the filename.

      static RwBool
      saveAtomicTrigger(RwBool check)
      {


          if (PickedAtomic && !check)
          {


              DffSave (PickedAtomic, "models/saved.dff");
          }


          return TRUE;
      }


      static RwBool
      InitializeMenu(void)
      {
          static RwChar fpsLabel[] = RWSTRING("FPS_F");
          static RwChar nearLabel[] = RWSTRING("Near Clip");
          static RwChar farLabel[] = RWSTRING("Far Clip");
          static RwChar showPosLabel[] = RWSTRING("Show Position");
          static RwChar namesLabel[] = RWSTRING("Name Choice");
          static RwChar assignLabel[] = RWSTRING("Assign Name");
          static RwChar saveLabel[] = RWSTRING("Save");
          if( MenuOpen(TRUE, &ForegroundColor, &BackgroundColor) )
          {
              MenuAddEntryBool(fpsLabel, &FPSOn, NULL);
              MenuAddEntryReal(nearLabel, &NearClip, NULL, 0.1f, 10.0f, 0.1f);
              MenuAddEntryReal( farLabel, & FarClip, NULL, 10.0f, 100.0f, 1.0f);
              MenuAddEntryBool(showPosLabel, &ShowPos, NULL);
              MenuAddEntryInt(namesLabel, &SelectedName, NULL, 0, NUMNAMES-1, 1, AtomicNames);
              MenuAddEntryTrigger(assignLabel, assignNameTrigger);
              MenuAddEntryTrigger(saveLabel, saveAtomicTrigger);
              return TRUE;
          }
          return FALSE;


      }

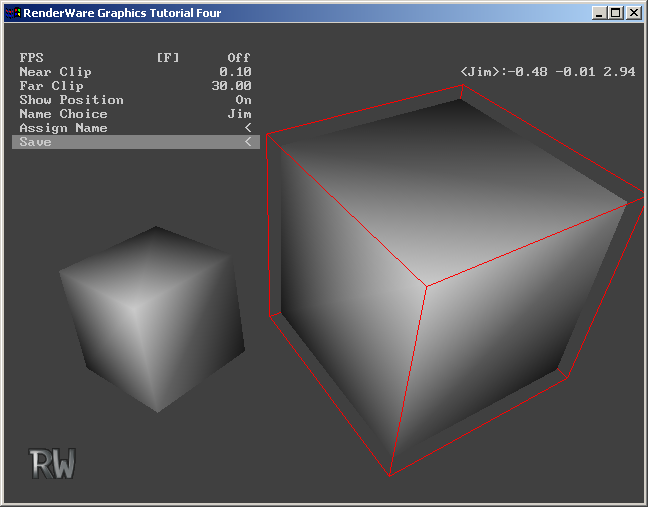

• Compile and run your code. Create an atomic by pressing the F1 key. Give the atomic a name, and then save the atomic to disk. Next drag-and-drop the written atomic (called saved.dff) onto the application. Check that the name has been kept. In the illustration below, the left-most cube has been given the name "Jim". The atomic has then been written to disk, and loaded into the application (cube on the right). This selected atomic is correctly called "Jim".


  Finally we will modify the save function to use the name of the atomic as the filename.

• In the saveAtomicTrigger() function use RenderWare Graphics string functions to create a name for the atomic, based on the string returned from RpAtomicNameGetName(). If no name is available then save the model with a default name such as noname.dff.

      static RwBool
      saveAtomicTrigger(RwBool check)
      {
          if (PickedAtomic && !check)
          {
              const RwChar *name = RpAtomicNameGetName(PickedAtomic);
              if (name)
              {
                  RwChar s[100];
                  RsSprintf(s, "%s.dff", name);
                  DffSave(PickedAtomic, (RwChar *)s);
              }
              else
              {
                  DffSave(PickedAtomic, "noname.dff");
              }
          }
          return TRUE;


      }


• Compile and run your application. Check that atomics are now saved using their name as a filename.
