Rotating Atomics
[Tutorial 2 - User Interaction]

Next we will rotate atomics using the mouse. The mouse button down event from the skeleton informs the application of the state of the shift and control keys. We will use this information to rotate an atomic when it is picked with the shift key held down. To perform this operation we will need new mouse-mode states, and the code to actually rotate the picked cube.

• Add new MouseMoveOperation states to represent the pick-and-rotate, and rotate operations:

      #ifndef UTILS
      #define UTILS


      typedef enum {
          MMNoOperation,
          MMPickAndTranslateObject,
          MMPickAndRotateObject,
          MMTranslateObject,
          MMRotateObject,


          MOUSEMOVEOPERATIONFORCEENUMSIZEINT = RWFORCEENUMSIZEINT
      } MouseMoveOperation;


• In our event handling code modify the HandleLeftButtonDown() function to check the state of the shift key before deciding which operation the user selects. The skeleton RsMouseStatus structure supplies the shift and control status.

      static RsEventStatus
      HandleLeftButtonDown(RsMouseStatus *mouseStatus)
      {
          /* Left mouse button down event handling...  */
          if (mouseStatus->shift)
          {
              MouseMoveAction = MMPickAndRotateObject;
          }


          else
          {
              MouseMoveAction = MMPickAndTranslateObject;
          }


          return rsEVENTPROCESSED;
      }


• Finally we need to change the Idle() function to process the new MouseMoveAction states. The MMPickAndRotateObject, and MMRotateObject cases are very similar to the translate equivalents you wrote earlier. The RotateAtomic() function will be written shortly.

          case MMTranslateObject :
              TranslateAtomic();
              break;
          case MMPickAndRotateObject :
              PickedAtomic = RwCameraPickAtomicOnPixel(Camera, &MousePos);


              if (PickedAtomic)
              {
                  AtomicGetBBox(PickedAtomic, &PickBox);
                  OldPos = MousePos;
                  MouseMoveAction = MMRotateObject;
              }
              else
              {
                  MouseMoveAction = MMNoOperation;
              }
              break;


          case MMRotateObject :
              RotateAtomic();
              break;


          default:
              PickedAtomic = NULL;
              break;
          }
          Render();


• Compile the application, and fix any problems. Now comment out the call to RotateAtomic() and debug through the code. Confirm that the logic behaves as we would expect, and that you can enter all the states correctly.

  Next add code to the update function to convert mouse deltas into rotation. These rotations are applied in object space, so we convert the camera vectors into the object space of the picked atomic. To do this we need to access the Local Transformation Matrix of the picked atomic. This is an object-to-world transformation. Inverting this matrix will convert from world space to the picked atomic's space. We can then use the left-right and up-down movements that the mouse makes in world space into rotations of the atomic.

• Implement the RotateAtomic() function:

      static void
      RotateAtomic(void)
      {
          RwFrame  *f;
          RwMatrix *worldToLocal, *tmpMatrix;
          RwV3d     up, right;
          RwReal    dx, dy;


          f     =  RwCameraGetFrame(Camera);
          right = *RwMatrixGetRight(RwFrameGetMatrix(f));
          up    = *RwMatrixGetUp(RwFrameGetMatrix(f));


          dx = OldPos.x - MousePos.x;
          dy = OldPos.y - MousePos.y;


          f            = RpAtomicGetFrame(PickedAtomic);
          worldToLocal = RwMatrixCreate();
          tmpMatrix    = RwFrameGetLTM(f);
          RwMatrixInvert(worldToLocal, tmpMatrix);


          RwV3dTransformVector(&up, &up, worldToLocal);
          RwV3dNormalize(&up, &up);
          RwV3dTransformVector(&right, &right, worldToLocal);
          RwV3dNormalize(&right, &right);


          RwMatrixDestroy(worldToLocal);


          /* Apply the rotations */
          RwFrameRotate(f, &up,    -dx*0.5f, rwCOMBINEPRECONCAT);
          RwFrameRotate(f, &right,  dy*0.5f, rwCOMBINEPRECONCAT);
          OldPos = MousePos;
      }
      /*
       *****************************************************************************
       */
      /* Idle */
      static void
      Idle(void)

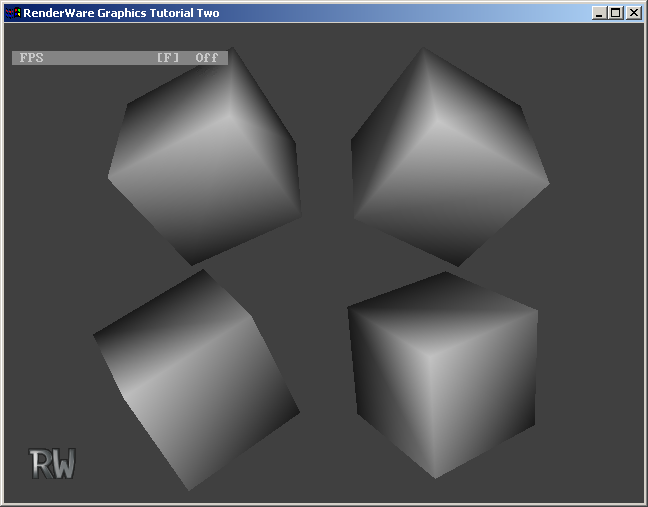

• Compile and run the program. You should be able to drag and spin cubes now.


Next...

---
